Description

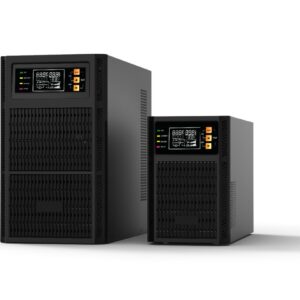

Delta 300 DLT series UPS, PWM controlled, IGBT technology, microcontroller controlled, sinusoidal waveform, ONLINE Double Conversion topology and parallel configurable devices. Advanced communication system supports many communication protocols and brings remote control advantage of the UPS.
Technical Specifications
- 3 phase in / 3 phase out
- Output isolation transformer
- Up to 91% efficiency
- Static by-pass
- External EPO switch input
- 5 control buttons LCD alphanumeric displaybrings detailed monitoring of measured parameters.
- 128 events alarm memory (4000 alarms)
- Clock and calender (battery supported)
- Advanced battery management controlscharge system battery test
- Online Double Conversion technology
• High performance at non-linear loads
• Dry contact simulation function
• DiaI-up modem connection and setup
• Custom input voltage and frequency ranges • Parallel operation up to 4 devices
• According to EC Directive; EN62040 • SNMP communication
• 2 years warranty
• 10 years spare parts support
• ISO9001, ISOI4001, CE certitication • Optional MODBUS adaptor
